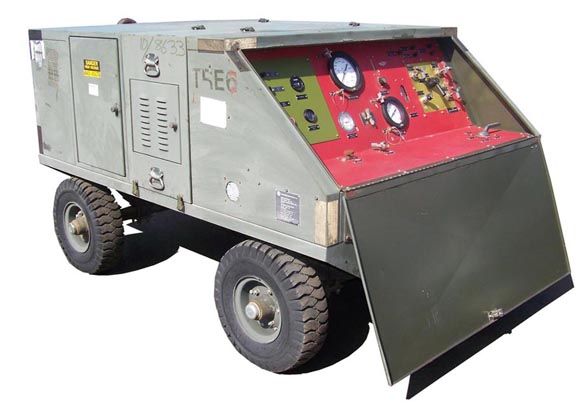

Hydraulic Portable Test Stand

MUH-157
GPM/PSI: See below
Fluid: Mil-H5606 or Mil-H 83282
Manufacturer: Hydraulic International
HP:
Shown as: Used
NSN: 4920-01-390-3653
Product Type:   Mule
Type:
Part No:
Model No: 94118-100

GPM: 10 GPM, 3000 PSI, or 5 GPM, 5000 PSI

Description/Function of unit

Features

  • Single system unit
  • 230/460 VAC, 3PH, 60Hz
  • 20HP motor
  • Working pressure 0-3000 PSI
  • Flow 0-10 GPM capacity
  • Air to oil cooler
  • System flow meter

    Major Components

  • Pressure gauge, 6000 PSI
  • Compound gauge
  • Hour meter
  • Fluid level gauge
  • Flow meter
  • On/off switch
  • Reservoir selector valve
  • Bypass valve
  • Main relief valve
  • Volume control
  • Pressure compensator control
  • Supply selector valve to choose from -8 or -12 supply line to aircraft
  • Heavy-duty cabinet and running gear with 600. x 9 tires
  • Piston type main pump
  • Boost pump
  •
    Approx. Dimensions:
    ALS ID: MUH-157
    Approx. Weight: 1860 lbs
    Location:

    Units Subject To Prior Sale
