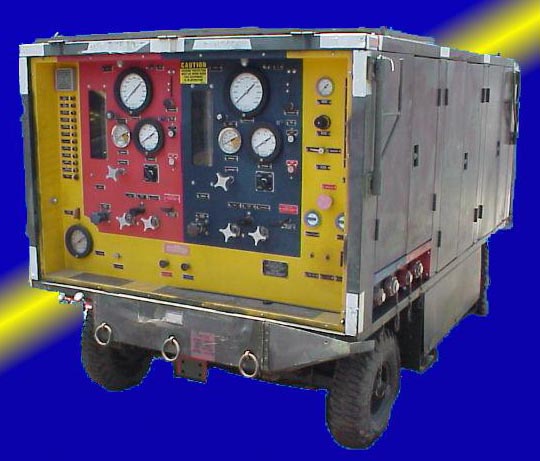

Hydraulic Mule

MUH-132
GPM/PSI: See Data
Fluid: MIL-H-5606, MIL-H-83282 or as specified
Manufacturer: ACL
HP: 70
Shown as: Used
NSN:
Product Type:   Mule
Type: MK3A
Part No: 9780-0184
Model No:

Leading Particulars

Capacity Each single system, 35 GPM @ 3000 PSI, 15 GPM @ 5000 PSI

Electrical Power Input 460 volts, 3 phase, 60 HZ, 250 AMP max.

Operating Fluid Temp To +77C (165F 5F)

Reservoir Capacity 32 US gallons

High Pressure Pump variable displacement, pressure compensator controlled, axial piston type, with integral boost pump.

Filtration Boost System 10 micron, High Pressure 5 micron, and Fill System 10 micron

Gauge Accuracy 0.5% full scale

Flowmeter 2% full scale, 3-30 GPM

Temperature Gauge 0-200F range

Heat Exchanger Fluid to air type

Fill Pump Gear type, 2 GPM @ 150 PSIG

Main Motor (2) 70 HP @ 1760 RPM

Ask for overhaul.

Approx. Dimensions: 120
ALS ID: MUH-132
Approx. Weight: 8154 lbs.
Location:

Units Subject To Prior Sale
