Hydraulic Portable Mule MUH-111

Hydraulic Portable Mule MUH-111

GPM/PSI: 9 @ 3000
Fluid: Red Oil
Manufacturer: Hydraulic International
HP: 12.5
Shown as: Used
NSN: 1730-00-541-8529
Product Type:   Mule
Type:
Part No: 636AS100-1
Model No: AM27T3

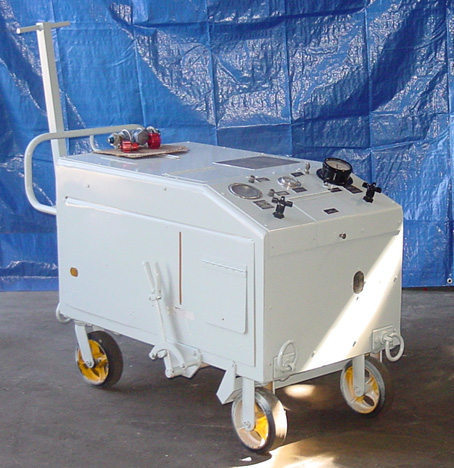

Unit is totally enclosed with sheet metal cabinets and mounted on casters. Unit has a 12.5 HP Reuland motor, 1800 RPM 220/440 Vac double shaft with C face mount (part no. 8236ATT31124) coupled at a Denison 500 series pump, (part no. PV05XW066-3WK) variable volume hand wheel pressure compensated control. 1800 RPM, 5000 PSI.

Unit is also equipped with an to oil heat exchanger and automatic air bleed. Pressure and return gauges, temperature gauge and hour meter.

Temperature Gauge -40 to 200º F
Gauge 0-5000 PSI 3.5" dia, 0-200 PSI 2" dia

Approx. Dimensions: 4' L x 3' W x 4' H
ALS ID: MUH-111
Approx. Weight: 750 lbs.
Location: ALS Warehouse



Units Subject To Prior Sale
