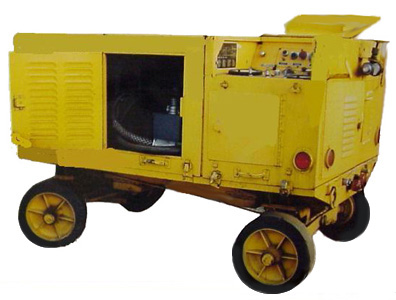

Hydraulic Portable Mule MUH-113

Hydraulic Portable Mule MUH-113

GPM/PSI: 6-20 @ 3000 PSI
Fluid: Red Oil
Manufacturer: Hydraulic International
HP:
Shown as: Used
NSN: 1730-01-219-6326
Product Type:   Mule
Type: AM27T-7
Part No: 68A5-J1001
Model No:

Volts: 220/460
Phase: 3
HZ: 60

These portable hydraulic mules were originally manufactured by Hydraulic International and are late model, low time and in excellent condition.

The hydraulic mules are completely assembled with a range of 6-20 GPM at 3000 PSI, Mil-5606 red oil service and are totally enclosed with sheet metal cabinet mounted on casters.

Each portable test stand includes the following standard features:

  • Reservoir drain valve
  • Steel reservoir with fluid level gauge
  • 40 HP electric motor
  • Heavy duty starter
  • Non by-pass filter (3 micron)
  • Check valve
  • Air/oil cooler with fan
  • Return filter (10 micron)
  • Pre-set relief valve
  • Automatic air eliminator
  • Hose storage rack
  • Parking brake and tow-bar
  • Input power cord
  • Hi pressure hose
  • Low pressure hose
  • Aircraft fill hose
  • Gauge calibration ports (panel mounted)
  • Pump case filter 3 micron
  • External manifold valve for hose
  • Hydraulic pump. pressure compensated, piston type with adjustable flow controls
  • Selector valve (panel mounted)
  • High pressure gauge 0-6000 PSI (panel mounted)
  • Low pressure gauge 0-3000 PSI (panel mounted)
  • Temperature gauge 20º F, 200º F (panel mounted)
  • Pressure compensated control (panel mounted)
  • By-pass valve (panel mounted)
  • Gauge calibration ports (panel mounted)
  • Flowmeter 0-3000 GPM (panel mounted)
  • Fluid sampling valve (panel mounted)
  • Hourmeter with 2 hours of operation time (panel mounted)
  • Stop/Start push button station with on/off toggle switch (panel mounted)
  • Push to read warning lights for temperature high pressure dirty filter, low pressure dirty filter, and pump case - dirty filter (panel mounted)

Note: Mules have simplified operating and simplified hydraulic diagram etched on metal plates in the cabinet with maintenance doors and panel doors for easy access.

Approx. Dimensions: 47
ALS ID: MUH-113
Approx. Weight:
Location:



Units Subject To Prior Sale
