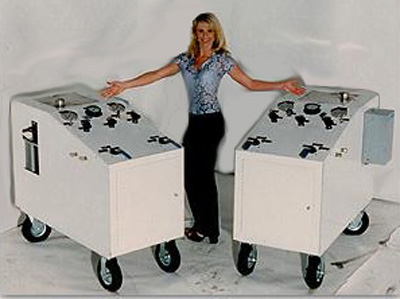

Hydraulic Mule MUH-119

Hydraulic Mule MUH-119

GPM/PSI: 0-9 GPM
Fluid: Red Oil Mil-Spec483285
Manufacturer: American Lab & Systems (ALS)
HP: 15
Shown as: New
NSN:
Product Type:   Mule
Type: T-45
Part No:
Model No:

Manufactured for Douglas T45 Program

  • Sheet metal enclosure including frame with tow bar and access doors
  • Air to Oil heat exchange
  • 6" pneumatic tires (4) on swivel casters
  • ¼" ID hose with fittings for high & low pressure
  • Electrical cord and plug
  • Denison series,15HP,1800 RPM, 3 PH, 60 CY, 220/440 V
  • High pressure filter
  • High pressure relief valve
  • Dual system (Capability) sloped control panel with control valve, pressure gauges, temp gauge, calibration ports, and stop/start push button station
Approx. Dimensions: 24
ALS ID: MUH-119
Approx. Weight: 500 lbs.
Location:

Units Subject To Prior Sale




Pneumatic nitrogen carts used for setting and filling struts on aircraft
