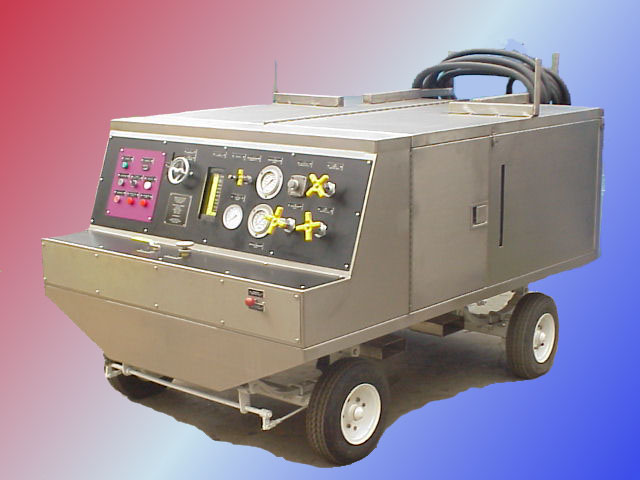

Hydraulic Portable Mule MUH-125-35

Hydraulic Portable Mule MUH-125-35

GPM/PSI: 35 @ 3000
Fluid: Skydrol
Manufacturer: American Lab & Systems (ALS)
HP: 75
Shown as: New
NSN:
Product Type:   Mule
Type:
Part No:
Model No: T-4000-35

T-4000-30 Series Specification Sheet 30 GPM Single System

HZ: 50/60
Vac: 220/440/480
Phase: 3

Heavy duty electric motor (75 HP) driven pump

Working Pressure: Variable to 3000 PSI

Rated Flow:

Variable to 35 GPM maximum (60HZ unit)
Variable to 30 GPM maximum (50HZ unit)

Type of Cabinet:

Stainless Steel Enclosure for fluid resistance and longevity; integral towbar for maneuverability pneumatic tires; Parking brake, low profile for underwing service

Control Panel:

Black anodized instrument panel to reduce glare; controls and gauges mounted on a sloped panel to ease operation and visibility.

Standard Feature

  • New quiet operation of 79 db or less
  • Single hydraulic system capability
  • Pressure compensated pump with adjustable flow and pressure controls
  • Supply/outlet pressure filter (3 Micron Absolute)
  • Return/inlet pressure filter (10 Micron Absolute)
  • Panel controls and Gauge also include:Push button ON/OFF switch;reservoir selector valve; supply pressure gauge; hourmeter and pyrometer
  • Closed or open loop test operations
  • Shock mounted pumps and motors
  • Cooler with fan
  • NEMA electrical enclosure
  • Heavy duty starter with overload protection and phase reserve relay
  • Stainless steel 41 gallon capacity reservoir with external drain valve
  • Complete access for serviceability and maintainability
  • Operations and maintenance manual

Optional Features

  • Panel mounted flowmeter indicator
  • By-pass valve
  • 50 FT. Hose assemblies (Skydrol resistant); 1¼" (1.250) low pressure and ¾" (0.750) high pressure
  • Stainless steel heavy duty retractable hose and cable storage racks
  • Return suction pressures gauge
  • Pump flow control at the panel
  • Back pressure circuit
  • Airbus R-A-T test circuit
  • 50 FT. Power cable
  • Aircraft quick disconnects; (1) supply and (1) return

30 & 50 GPM Models also available.
Standard Warranty period of 18 Months from date of start up.

Approx. Dimensions: 84" L x 60" W x 50" H
ALS ID: MUH-125-35
Approx. Weight: 4250 Lbs.
Location:

Units Subject To Prior Sale

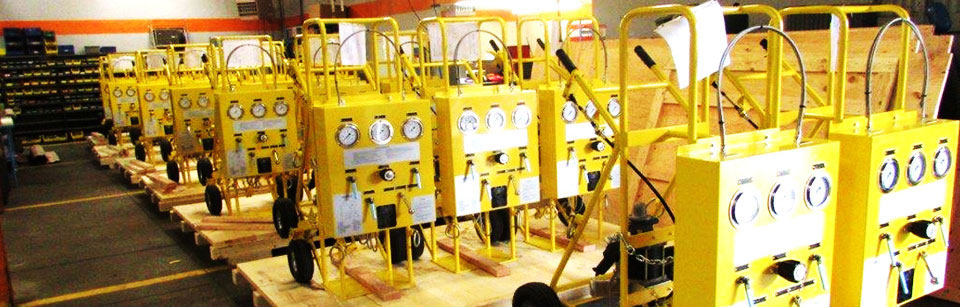

Pneumatic nitrogen carts used for setting and filling struts on aircraft
