American Lab & Systems


TEST STANDS

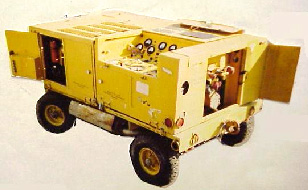

Hydraulic Portable Mule MUH-129

Hydraulic Portable Mule MUH-139

GPM/PSI: 5000 PSI
Fluid:
Manufacturer: Sun Electric
HP:
Shown as: Used
NSN: 1730-855-6108
Product Type:   Mule
Type: MSU-1
Part No:
Model No:
  • 3 in 1 unit
  • Unit flow divider circuit for test of 2 separate aircraft at one time or dual system operation
  • These units are portable mules, self-propelled and towable, with 400 cycle 30 KVA AC power and 800 AMPS, 30 VDC generator for staring and servicing helicopters and fixed wing aircraft.
  • This unit can be used with many different aircraft or helicopters, use as a GPU or as a hydraulic mule.

Technical Data

Kline pump PVH6105A2 (1210 series) 2.14 cubic in. rev., 5000 PSI 3600 RPM max., 20 GPM @ 3000 PSI continuous duty, 20 GPM @ 4000 PSI intermittent duty.

Sun Electric motor generator frame 324Y, PN 506-504, 30 KVA, 400 cycle, 120/208 Vac, 3 phase, 28 VDC, 800 AMPS

Ceralus Diesel engine 3 cylinder, 2400 RPM, 3 micron ABS, 30 GPM, 5000 PSI hydraulic filter.

Four (4) separate control stations on one (1) common panel:

  • Diesel engine control
  • A/C power out control
  • D/C power out control
  • Hydraulic system control

Can be offered fully re-manufactured and warranted on request.
Available for inspection at our Los Angeles facility.

Approx. Dimensions: 48¾
ALS ID: MUH-129
Approx. Weight:
Location:



Units Subject To Prior Sale




Pneumatic nitrogen carts used for setting and filling struts on aircraft
