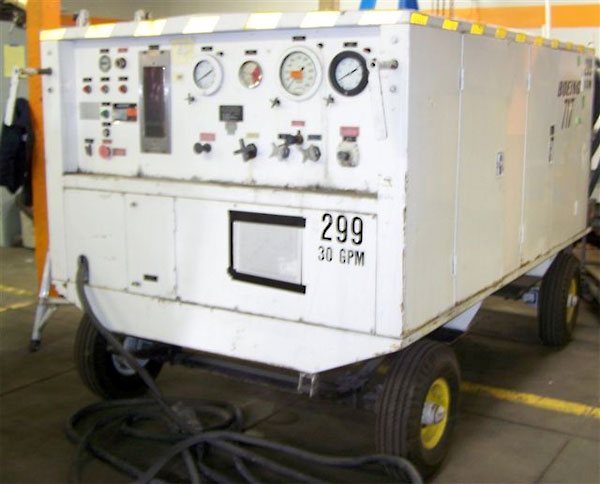

Hydraulic Portable Mule MUH-156

Hydraulic Portable Mule MUH-156

GPM/PSI: 30 GPM, 3000 PSI
Fluid: Skydrol
Manufacturer: ACL
HP:
Shown as: Used
NSN:
Product Type:   Mule
Type:
Part No: 9780-0257
Model No: 9780-0192

Description/Function of unit

The test stand is designed to provide a source of hydraulic power up to 30 GPM, at 3100 PSIG with open or closed loop operation and to service the aircraft reservoir using a low pressure fill system. The stand instrumentation includes pressure, flow and temperature display. The unit is completely self-contained and requires only connection to a source of 460 volt, 3 phase, 60 HZ.

Note: 240 VAC, on request.

Leading Particulars
Test fluid:Skydrol
Temperature:160º maximum shut down
Filtration:Supply 3 micron absolute, Return 10 micron nominal, Fill 5 micron
Electric power Input:460 volts, 3PH, 60Hz, 78 FLA

Instrumentation

  • Supply pressure gauge, 0-6000 PSI, 6” dial
  • Boost/return system gauge, 30 in HGA to 300 PSI, 4” dial
  • Temperature gauge, 4ºF -200ºF, 3½” dial
  • Flowmeter, 3-34 GPM

Major Components

  • Reservoir, stainless steel
  • Boost pump, integral to main pump
  • Main pump, variable volume, pressure comp. 0-30 GPM, 3000 PSI,5000 PSI at reduced flow
  • Main pump/motor, 60Hp, 1750 RPM, 460V, 3PH, 60Hz
  • Fill pump motor, ½ HP rating 460V, 3PH, 60 Hz
  • Heat exchanger, air to oil

Applicability
All narrow body aircraft including A319 and A320

Manual Available: yes
Price Code: DSAA



Approx. Dimensions: 118” x 66” x 68” (l x w x h)
ALS ID: MUH-156
Approx. Weight: 4500 lbs (dry)
Location: Whse



Units Subject To Prior Sale




Pneumatic nitrogen carts used for setting and filling struts on aircraft
