PH30E Small Hydraulic Test Stand (Mule)

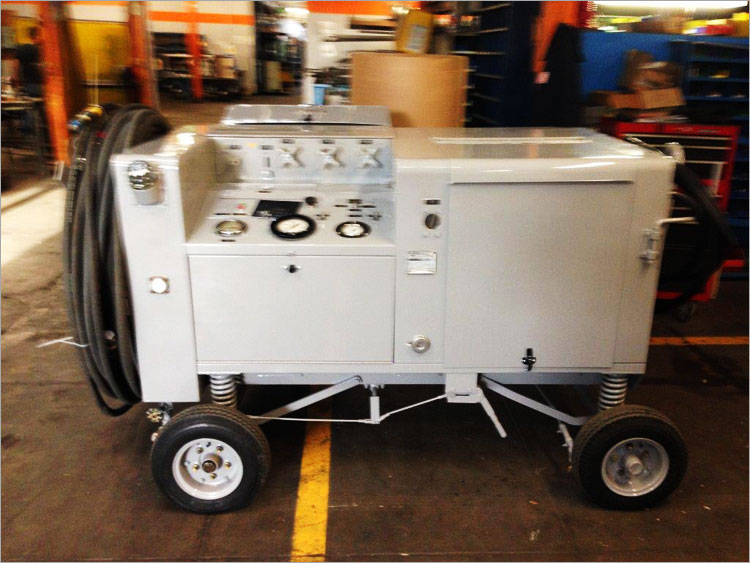

PH30E small hydraulic test stand (mule)

GPM/PSI: 25 @ 3000
Fluid: Red Oil
Manufacturer: Teledyne Sprague
HP: 60
Shown as: Used
NSN:
Product Type:   Mule
Type:
Part No:
Model No: PH30E

This late style unit is a dual output system complete with sound proof insulation, late style Denison pump, 35 ft. power cable and hose assemblies.

Unit has Fisher-Porter 3-25 flowmeter, panel mounted pressure gauges, 0-30 PSI, 0-160 PSI, (-6000 PSI).

The dual outlet system includes shut off valves, aircraft or mule reservoir selector valve, 3 micron filters, boost pump, main pump starter.

This unit is ideal for aircraft servicing and may be converted to Skydrol use for narrow body aircraft ground checkout.

Currently operated on 440 Vac, 60 HZ, 3 Phase, 60 HP motor, 1800 RPM by Reuland.

External hoses and quick disconnects are quote separately.

Approx. Dimensions:
ALS ID:
Approx. Weight:
Location:



Units Subject To Prior Sale




Pneumatic nitrogen carts used for setting and filling struts on aircraft
