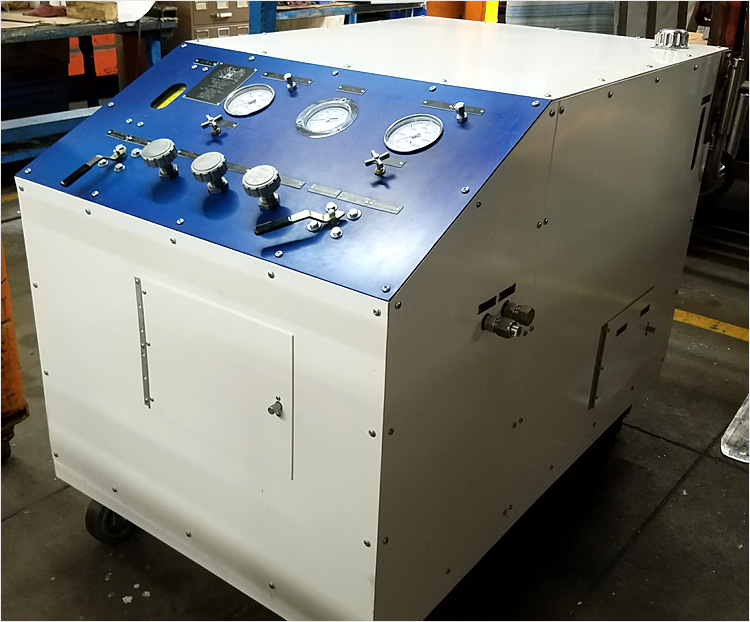

T45 Small Hydraulic Test Stand (Mule)

T45 Small Hydraulic Test Stand (Mule)

Hydraulic portable test stands (mules), model T45, rated 10 GPM, 3000 PSI, 460 vac, 60Hz, 3PH, skydrol service, approximately 800 lbs, ALS ID MUH-119-10-S-4
The hydraulic mules include the following standard features:

  • Preset relief valve
  • 20 gallon steel reservoir w/filler cap
  • Reservoir selector valve
  • Heavy duty starter
  • Manual air bleed
  • 2 Pressure/return hose (20 ft)
  • Dual System
  • 2 manually controlled 4 way valves
  • Stop/Start station w/name tag
  • Heavy duty 20HP motor
  • Bypass valve w/ID tag
  • Non-bypass pressure filter (3 micron) - Input power cord (35 ft.) (STD)
  • Supply shut off valve with name tag
  • 4 casters, 2 swivel, 2 stationary
  • Flowmeter with name tag(calibrated)
  • Hand tow bar
  • Denison hydraulic pump, pressure compensated piston type with adjustable flow control
  • Sheet metal enclosure including access door and removable panels painted with skydrol resistant paint
  • Air to oil heat exchanger
  • Adjustable pressure 0-3000 PSI
  • Panel mounted pressure gauge 0-6000 psi (calibrated)

Adjustable flow 1-10 GPM

Unit will be crated for shipment



Units Subject To Prior Sale




Pneumatic nitrogen carts used for setting and filling struts on aircraft
