POWER UNITS

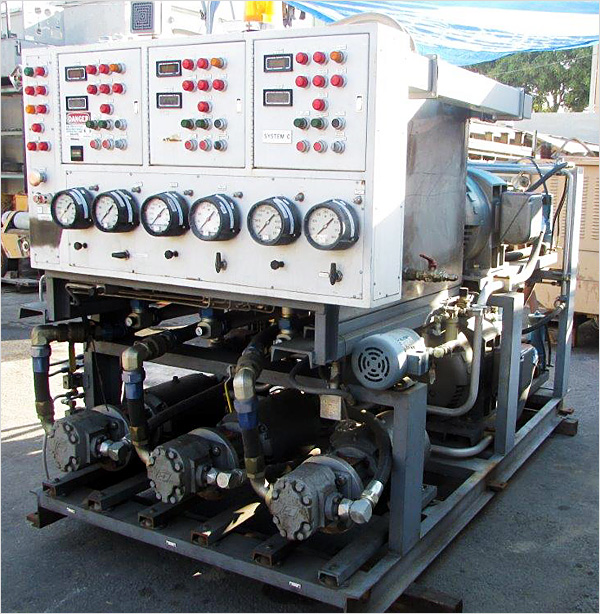

Free Standing 3 System Central Power Unit

Free Standing 3 System Central Power Unit

NOTE: THE HOUR METER ON THE UNIT CURRENTLY SHOWS .32 HOURS RUNTIME.

CURRENTLY IN STOCK IS A 3 SYSTEM POWER UNIT, EACH SYSTEM IS CAPABLE OF 50 gpm @ 3000 psi WITH 5000 psi AVAILABLE AT REDUCED FLOWS CONSISTING OF THE FOLLOWING COMPONENTS

  • 280 GALLON STAINLESS STEEL COMMON RESERVOIR

MAIN SYSTEMS

  • 3 BALDOR ELECTRIC MOTORS 100 H.P., 1760 RPM’S,230/460 VAC,ODP,FRAME #404TC
  • 3 DENISON HI PRESSURE ,PRESSURE COMPENSATED PISTON PUMPS M/N P7W-RB-C-00
  • 3 HI PRESSURE FILTERS,MFG: PTI,CAPABLE OF 80 GPM/6000 PSI
  • 3 LO PRESSURE FILTERS WITH DELTA P GAUGES
  • 3 CASE DRAIN FILTERS, MFG: PTI
  • 3 CASE DRAIN ANALOG FLOWMETERS 1-15 GPM

BOOST SYSTEMS

  • 3 BALDOR ELECTRIC MOTORS 15 H.P. , 1800 RPM’S, 230/460 ODP,FRAME # 254TC
  • 3 KENNEDY HYDRAULICS M/N P7C40 PUMPS
  • 3  BOOST FILTERS

RE-CIRCULATING PUMP

  • 1 BALDOR ELECTRIC MOTOR,3/4 H.P.,1800 RPM’S, 230/460 VAC
  • 1 DELTA HYDRAULICS PUMP

HEAT EXCHANGER

  • 3 WATER TO OIL HEAT EXCHANGERS,MFG:THERMAL TRANSFER PRODUCTS LTD.PART # B-1004-C4-T

PANEL MOUNTED ITEMS

  • 3 DIGITAL FLOWMETER READOUTS
  • 3 DIGITAL TEMPERATURE READOUTS
  • 3 MAIN PRESSURE GAUGES 0-5000 PSI WITH TEST PORTS
  • 3 RETURN PRESSURE GAUGES 0-400 PSI WITH TEST PORTS
  • DIRTY FILTER INDICATOR LIGHTS FOR THE FOLLOWING

MAIN PRESSURE FILTERS, MAIN RETURN FILTERS, CASE DRAIN FILTERS,BOOST PRESSURE FILTERS



Units Subject To Prior Sale




Pneumatic nitrogen carts used for setting and filling struts on aircraft
