TS103K-PTS-S4 Open Style Hydraulic Test Stand

TS103K-PTS-S4 Open Style Hydraulic Test Stand

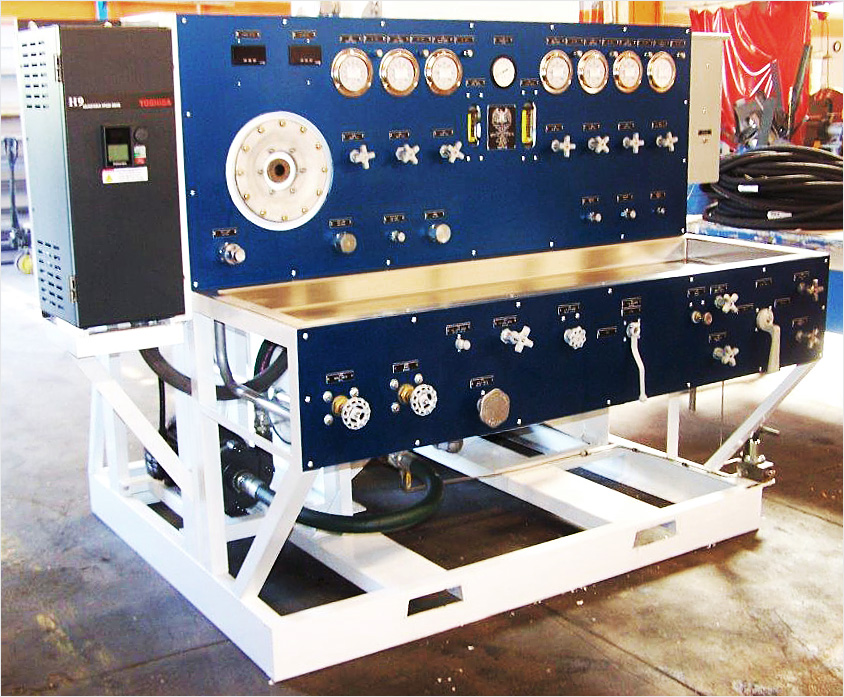

Open style hydraulic test stand, model TS103K-PTS-S4, the test stand will be approximately 7’ x 5’ x 5’ (WDH) with a full size stainless steel sink, blue anodized instrument and control panels, skydrol service, 440vac, 3Ph, 60 cycles (please advise if different). The test stand will be capable of testing the following:

  • Hydraulic pumps
  • Actuators
  • Components
  • Hose and related items

The pump drive is rated continuous 60HP with overload to 75HP, 500 to 4000 RPM’S. A variable frequency electronic controller is used to control and read RPM and torque. All pressure gauges and flow meters will be calibrated. A separate hydraulic circuit with a 20HP motor driving a 0-5000 PSI, 0-10 GPM pump is used to flow test hydraulic components to 5000 PSI at 7GPM and 3000 PSI at 10 GPM. The pump flow and pressure is adjustable from 0 to full range. There is also a 10,000 PSI hand pump static circuit.

Major Component:

  • Skydrol fluid
  • (4) 0-5000 PSI pressure gauges
  • (1) Temperature gauge
  • (1) .6-6 GPM flow meter
  • (1) 4-40 GPM flow meter
  • (1) Static pressure gauge 0-10,000 PSI
  • (1) test pad for testing your pumps
  • (1) 60HP, 3600 RPM motor and VFD
  • Closed loop pressurized reservoir
  • (1) Denison pump and motor

The finished test stand is warranted for 18 months and include circuit drawings and brief operations manual.

Condition: Combination unit using both factory new/overhauled components.



Units Subject To Prior Sale
