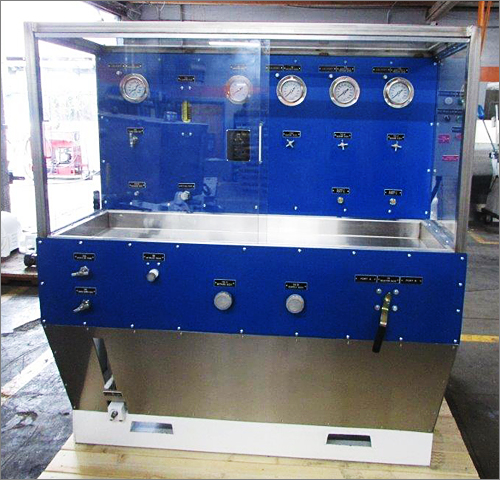

TSH-111-10 Hydraulic Test Stand Blue

Service Carts for Aircraft Brakes

GPM/PSI: 0-10 GPM/0-3000/0-5000 PSI
Fluid: Red Oil
Manufacturer: American Lab & Systems (ALS)
HP: 20
Shown as: New
NSN:
Product Type:   Test Stand
Type:
Part No:
Model No: TS103K-H5

Volt: 220/440
PH: 3
HZ: 60
RPM: 1800

Note Unit is shown with skirt (optional)

This unit is capable of testing actuators, valves, accumulators, and hoses.

The Power Unit has a 600 series Denison variable volume pressure compensated pump.

It also includes a high pressure filter (3 micron), low pressure filter (10 micron), water heat exchanger, relief valve, check valve, drain valve, 60 gallon reservoir, electrical control enclosure with starter, fuses, and relay.

This Test Stand gauge panel and control valve panel are mounted on an angle iron frame with stainless steel work sink which drains into the reservoir.

The Test Stand construction is unique in that all hydraulic components are tank mounted behind the control panel, making access very easy to all items.

The black anodized aluminum gauge test panel includes:

  • Three (3) 4” dia pressure gauges
  • One (1) 10 GPM flowmeter
  • Five (5) bulk head fitting and test ports
  • One (1) Gauge shut off valve
  • One (1) 3 ½” dia temperature gauge

The black anodized aluminum control valve panel includes:

  • One (1) push button stop/start station
  • One (1) shut off valve
  • One (1) 4 way, manual operated selector valve

This is a self-contained test stand with new, overhauled, and factory warranted components.

Approx. Dimensions:
ALS ID: TSH-111-10 Blue
Approx. Weight:
Location:



Units Subject To Prior Sale
